Create GitHub Secret

This guide demonstrates how to implement a self-service action in Port that allows you to create GitHub Secrets in your GitHub repository directly from Port.

In this example we are using a pre-defined GitHub Action from GitHub Marketplace called Create GitHub Secret Action.

Common use cases

CI/CD Management: Store API keys, deployment tokens, and other credentials needed for automated workflows.
Environment Configuration: Manage environment-specific secrets for different deployment stages.
Security Compliance: Centralize secret creation with proper approval workflows and audit trails.
Developer Productivity: Enable developers to create secrets without requiring direct repository access.

Prerequisites

Complete the onboarding process.
Port's GitHub app needs to be installed in your GitHub organization.

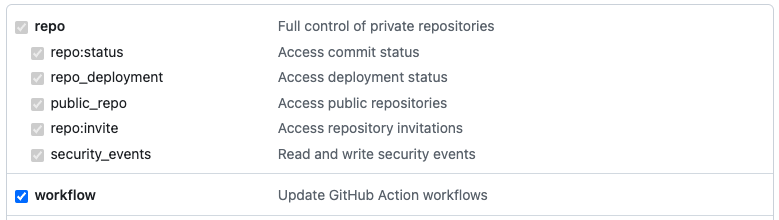

A Classic Personal Access Token with the following scopes:
- repo (Full control of private repositories).
- admin:org (Full control of orgs and teams, read and write org projects).
Port Client ID and Client Secret (learn more).

Set up data model

To represent GitHub secrets in your Port catalog, we'll create a dedicated blueprint.

Create the GitHub Secret blueprint

Go to the Builder page of your portal.
Click on + Blueprint.
Click on the {...} button in the top right corner, and choose Edit JSON.

Add this JSON schema:

Blueprint flexibility

Keep in mind this can be any blueprint you would like and this is just an example. You can customize the properties based on your organization's needs.

GitHub Secret blueprint (Click to expand)

{
  "identifier": "githubsecret",
  "title": "GitHubSecret",
  "icon": "Github",
  "schema": {
    "properties": {
      "secret_key": {
        "icon": "Github",
        "title": "Secret Key",
        "type": "string",
        "description": "All Uppercase",
        "pattern": "[^a-z]*$"
      },
      "secret_value": {
        "icon": "Github",
        "title": "Secret Value",
        "type": "string"
      }
    },
    "required": ["secret_key", "secret_value"]
  },
  "mirrorProperties": {},
  "calculationProperties": {},
  "relations": {}
}

Click Save to create the blueprint.

Implementation

Add GitHub secrets

In your GitHub repository, go to Settings > Secrets and add the following secrets:

PERSONAL_ACCESS_TOKEN - A Classic Personal Access Token with the following scopes:
PORT_CLIENT_ID - Port Client ID learn more.
PORT_CLIENT_SECRET - Port Client Secret learn more.

Add GitHub workflow

Create the file .github/workflows/create-repo-secret.yml in the .github/workflows folder of your repository.

Dedicated Workflows Repository

We recommend creating a dedicated repository for the workflows that are used by Port actions.

Create GitHub Secret Workflow (Click to expand)

name: Create Repository Secret

on:
  workflow_dispatch:
    inputs:
      secret_key:
        type: string
        description: Name of the secret's key
      secret_value:
        type: string
        description: value of the secret
      port_context:
        required: false
        description:
          Who triggered the action and general context (blueprint, run id, etc...)
        type: string

jobs:
  create_secret:
    runs-on: ubuntu-latest
    steps:
      - name: Mask secret value
        run: echo "::add-mask::${{ inputs.secret_value }}"

      - uses: gliech/create-github-secret-action@v1
        with:
          name: ${{ inputs.secret_key }}
          value: ${{ inputs.secret_value }}
          pa_token: ${{ secrets.PERSONAL_ACCESS_TOKEN }}

      - name: Mask secret key
        run: echo "::add-mask::${{ inputs.secret_key }}"

      - name: UPSERT Entity
        uses: port-labs/port-github-action@v1
        with:
          identifier: ${{ inputs.secret_key }}
          title: ${{ inputs.secret_key }}
          team: "[]"
          icon: DefaultBlueprint
          blueprint: ${{ fromJson(inputs.port_context).blueprint }}
          properties: |-
            {
              "secret_key": "${{ inputs.secret_key }}",
              "secret_value": "${{ inputs.secret_value }}"
            }
          relations: "{}"
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          baseUrl: https://api.getport.io
          operation: UPSERT
          runId: ${{ fromJson(inputs.port_context).runId }}

      - name: Inform completion of request to create secret in Port
        uses: port-labs/port-github-action@v1
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          baseUrl: https://api.getport.io
          operation: PATCH_RUN
          status: "SUCCESS"
          runId: ${{fromJson(inputs.port_context).runId}}
          logMessage: "Created github secret ${{ github.event.inputs.secret_key }}"

Set up self-service action

Now we'll create a self-service action that allows users to create GitHub secrets through Port's interface.

Head to the self-service page.
Click on the + New Action button.
Click on the {...} Edit JSON button.

Copy and paste the following JSON configuration into the editor.

Create GitHub Secret Action (Click to expand)

Modification Required

Make sure to replace <GITHUB_ORG> and <GITHUB_REPO> with your GitHub organization and repository names respectively.

{
  "identifier": "create_git_hub_secret",
  "title": "Create GitHub Secret",
  "icon": "Github",
  "description": "Creates a GitHub secret in my repository",
  "trigger": {
    "type": "self-service",
    "operation": "CREATE",
    "userInputs": {
      "properties": {
        "secret_key": {
          "icon": "DefaultProperty",
          "title": "Secret Key",
          "type": "string",
          "pattern": "^[^a-z]*$"
        },
        "secret_value": {
          "icon": "DefaultProperty",
          "title": "Secret Value",
          "type": "string",
          "encryption": "aes256-gcm"
        }
      },
      "required": [
        "secret_key",
        "secret_value"
      ],
      "order": [
        "secret_key",
        "secret_value"
      ]
    },
    "blueprintIdentifier": "githubsecret"
  },
  "invocationMethod": {
    "type": "GITHUB",
    "org": "<GITHUB_ORG_NAME>",
    "repo": "<GITHUB_REPO_NAME>",
    "workflow": "create-repo-secret.yml",
    "workflowInputs": {
      "secret_key": "{{ .inputs.\"secret_key\" }}",
      "secret_value": "{{ .inputs.\"secret_value\" }}",
      "port_context": {
        "entity": "{{.entity}}",
        "blueprint": "{{.action.blueprint}}",
        "runId": "{{.run.id}}",
        "trigger": "{{ .trigger }}"
      }
    },
    "reportWorkflowStatus": true
  },
  "requiredApproval": false
}

Click Save.

Now you should see the Create GitHub Secret action in the self-service page. 🎉

Let's test it!

Head to the self-service page of your portal.
Click on the Create GitHub Secret action.
Fill in the secret details:
- Secret Key: Enter a name for your secret (all uppercase, e.g., MY_API_KEY).
- Secret Value: Enter the secret value (this will be encrypted).
Click on Execute.
Wait for the workflow to complete.
Verify the secret was created:
- Check your GitHub repository's secrets in Settings > Secrets and variables > Actions.
- Verify the new entity appears in your Port catalog under the GitHub Secret blueprint.

Action permissions

You may want to restrict this action to specific users or teams. To do this:

Edit the action by hovering over it and clicking on the ... button, then selecting Edit.
In the Permissions tab, select the users or teams who can execute the action.
